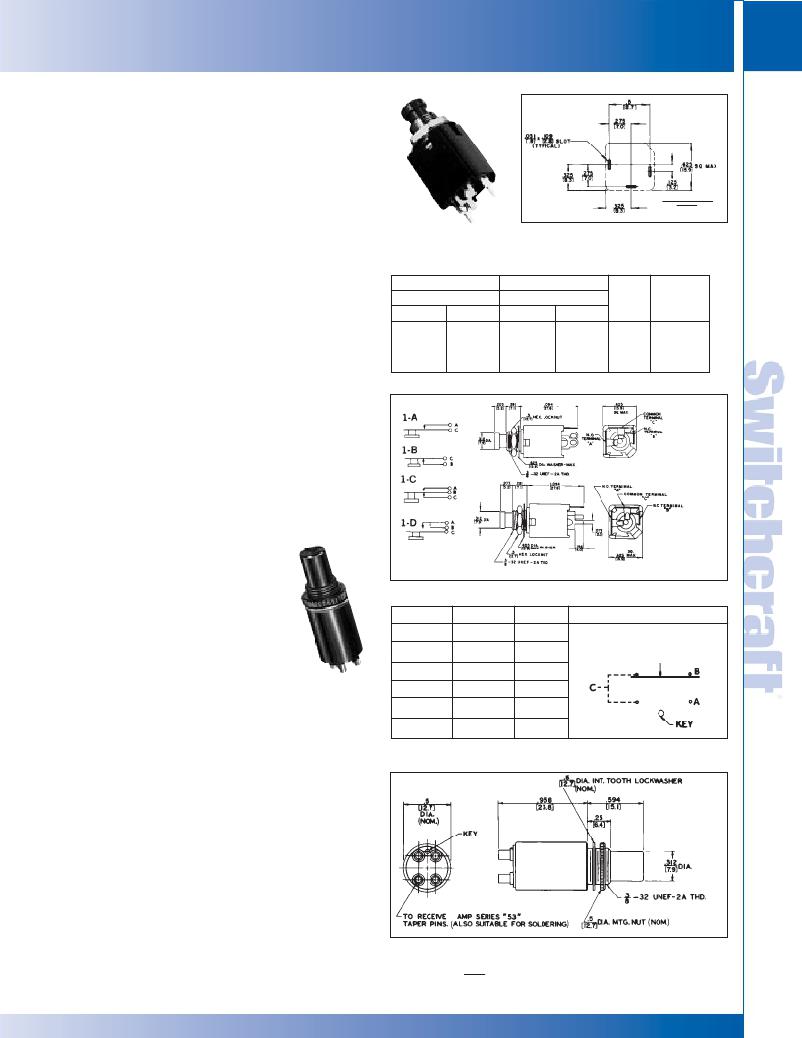

Hi-D SWITCH SWITCHES - SERIES H-100, H-100PC, H-200, H-200PC
SWITCHES
?
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information
HI-D SWITCH ? PC MOUNT SWITCHES
SERIES H-100, H-100PC, H-200, H-200PC
Compact, momentary switches mount on .625" (15.87 mm)
centers in rows or matrix arrays and are the same height and
panel size as Switchcraft’s Hi-D Jack. Rugged “box” body
protects contact springs against mechanical damage and
275
keys them in precise alignment. Precision springs produce
high contact pressure, smoother wear-reducing actuation,
and positive “make-break”. Recommended where contact
resistance is not critical.
MOUNTING
SERIES H100, H200
PART NUMBERS
COMPONENT SIDE
SHOWN
Rear of panel mount in .375" (15.87 mm) diameter hole in
Solder Lug Terminals
PC Terminals
panels up to .156" (3.96 mm) thick. Behind panel space:
Pushbutton Color/Part Number
Pushbutton Color/Part Number
Circuit
Schematic
1.094" (27.79 mm) minimum. Mounting hardware supplied.
Red
Black
Red
Black
Switches with PC terminals mount directly to PC boards,
and may also be panel mounted with threaded bushing.
SPECIFICATIONS
H101
? H102
H103
? H103D
H201
? H202
H203
? H203D
? H101PC
? H102PC
H103PC
-
? H201PC
? H202PC
H203PC
-
1-A
1-B
1-C
1-D
See Below
Switch Housing: Molded plastic.
Mounting Bushing: Copper alloy, plated.
Pushbutton/Actuator: Thermoplastic, red or black with
concave face.
Contact Springs: Copper alloy, silver or gold-plated.
Contacts: Integral, 1-A, 1-B, 1-C, or 1-D, 0. 25 A, 30 W
maximum, non-inductive load.
Contactor: Copper alloy, plated.
Locknut: Copper alloy, plated. P10001 (supplied).
Washer: Steel, nickel-plated. S10221 (supplied).
SPECIAL ORDER FEATURES
? Other pushbutton colors.
? Legends (see page 270).
? Special order only; contact factory for price and delivery.
Series H-100, H-200
Series
H-100PC
H-200PC
PART NUMBERS
Series DA
Button Color
Circuit
Schematic
DA-SWITCH SWITCHES
SERIES DA
Enclosed momentary pushbutton switch. Designed to meet
switching requirements of computers, data processors,
ground support systems, machine and process controls, test
equipment and intercoms. Anodized aluminum body protects
? DA013
? DA023
? DA033
? DA043
? DA053
? DA083
Red
Black
Green
Blue
White
Yellow
A-B
A-B
A-B
A-B
A-B
A-B
A-B contacts may be externally wired to
provide a 1-C circuit as illustrated below.
switch contacts from dirt, dust and bending during mounting.
Terminals accept AMP Series 53 taper pins. Mount in .375"
(9.5 mm) hole on .531" (13.5mm) centers. Behind panel
depth .938" (23.8mm) minimum.
SPECIFICATIONS
Housing: Aluminum, black anodized.
Button: Thermoplastic, black.
Terminal Base: Thermoset black phenolic.
Terminals: Copper alloy, gold-plated.
Contacts: Integral. 500 mA, 5 W maximum,
non-inductive load.
Contactor: Copper alloy, plated.
Hardware: Supplied with one, ? P1970 aluminum,
black anodized knurled mounting nut, and one,
P1971 parkerized lockwasher.
? Special order only; contact Switchcraft for price and delivery.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
